 | KX-ZTT CC MG |  |  | |
 |
||||
| Part-no.: 12.99512 | ||||
| Description | Value | ||
| | built-in capacitor typ | yes | |
| | frequency MHz | 6 | |
| | internal capacitance C1, C2 in pF | 22 | |
| | frequency tolerance at +25°C in % | ± 0,5 | |
| | frequency stability at -20° ~ +80°C in % | ± 0,3 | |
| | aging for 10 years in % | ± 0,3 | |
| | resonant resistance in ohm max. | 30 | |
| | test circuit IC | CD 4069UBEX2 | |

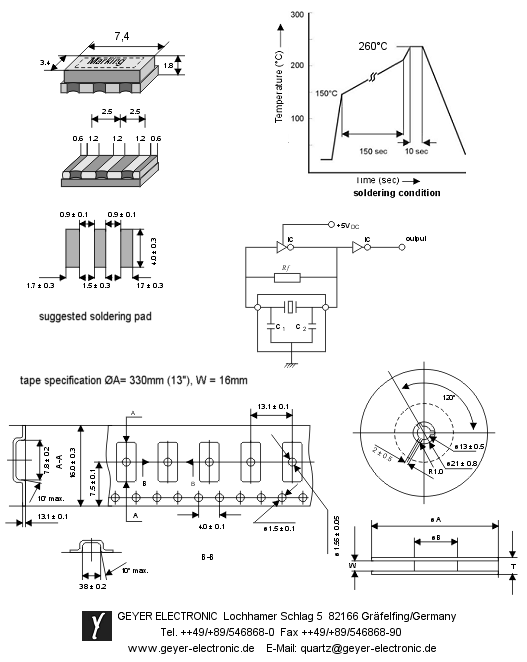

| | size l/w/h in mm | 7,4/3,4/1,8 | |
| | RoHS started from date code | May, 2005 | |
| | contents of reel in pcs. | 4000 | |
